Automatic UV coating line (Metalizing)

SGSP value engineered automatic UV painting line is designed to operate highly efficiently as well as consistently for many years and customized for each project. The whole set coating line should meet the requirements of high degree of automation, low energy consumption and minimize the operating cost.

SGSP automatic UV painting line is chain conveyor system with paint booth, IR oven and UV curing machine. Spraying can be applied by fixed gun and multi axis painting machine according to product specifications. Up to 10000 class dust free clean room can be configured for high quality production requirement.

SGSP UV line is completely custom design project upon user requirements specifications (URS) such as product properties, needed work flow and capacity etc. Based such parameters we will apply specific spraying technologies such as conveyorized gun fixed spraying, and reciprocating spraying etc.

SGSP sets a new standard for UV coating application. Its increased capacity, lower solvent consumption, faster changeovers, and a process free of operator variables bring to the next level the efficiency in today’s industries.

SGSP UV coating line take care of everything from design and manufacturing to installation and commissioning.

SGSP coating line are supplied as a complete delivery including all necessary process zones:

1. Loading / unloading zone

2. Pre-treatment -Flaming, De-dusting

3. Deionization zone

4. Primer application booth -1

5. Base coat application booth - 2

6. IR curing zone

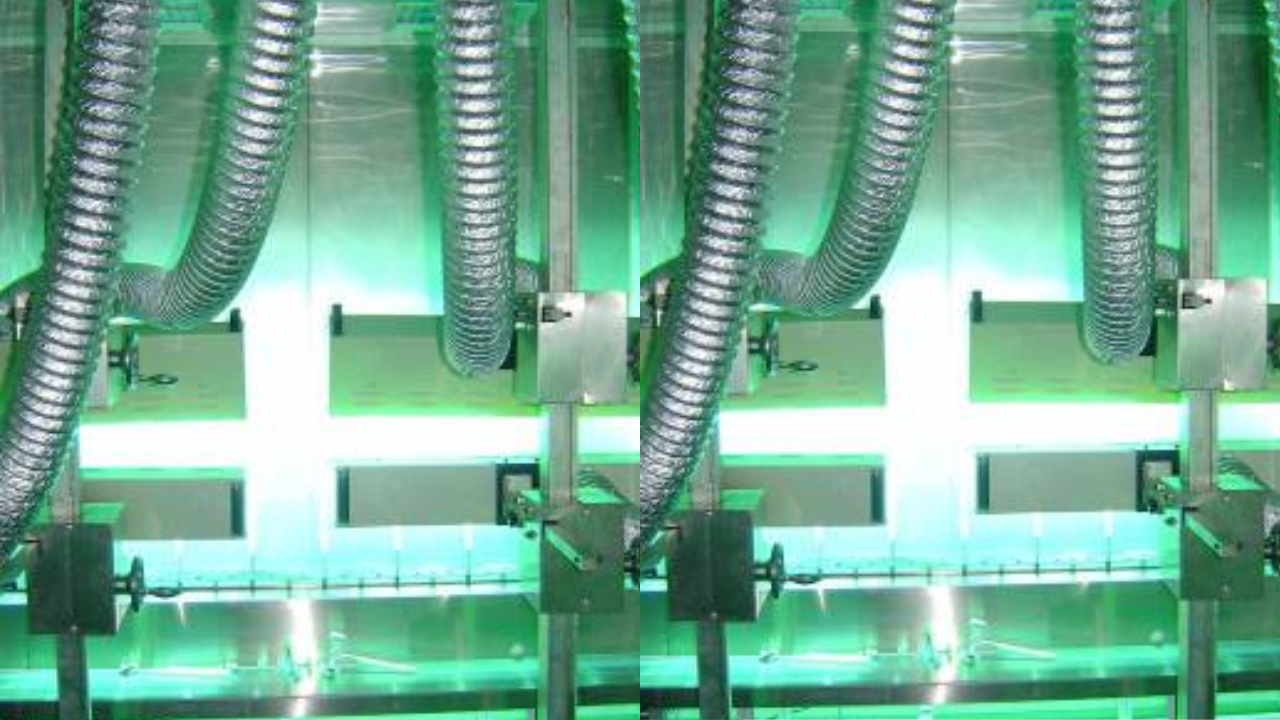

7. UV curing zone

8. Unloading / loading zone

9. Vacuum Metalizing (*we outsource not OEM)

10. Deionization zone

11. Top coat application booth - 3

SGSP Customized UV painting lines meets clients requirements for

1. Automobiles- Automobiles parts

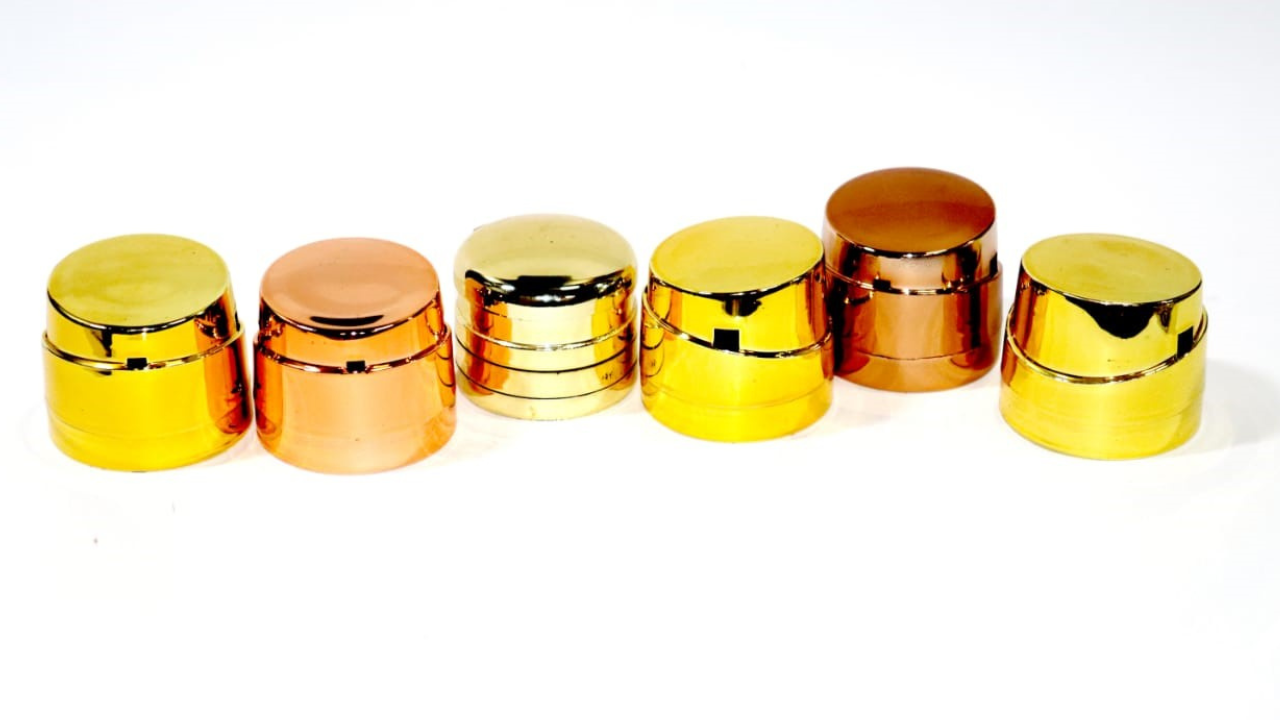

2. Colour Cosmetics – Nail polish bottles, Caps & accessories

3. Pharmaceutical & Cosmetics – Bottles & Caps & accessories

4. Perfume & Aerosol- Bottles & Caps & accessories Wine & spirit bottle

5. Electronics & Switchgear

6. Ceramic & Sanitary wear

7. Electronics

8. Home appliances

9. Glass & Solar
